Conductive film controlling an Interface-Resistance TREKION CM3100 |
|||||||||
| TP-CM3100 series Summary | |||||||||
| In case of evaluating conductivity and electrical chemical properties on various solid state electrolytes, it is commonly applied to assemble cells for assessment under a maximum pressure so as to refrain thoroughly the Interface resistance. It is fairly spending a time and skill of assembler. Now, we have developed a conductive electrolyte film sheet controlling completely any Interface resistance, of which advantages are to be Easily, Exactly, Efficiently measured the conductivity rate and bulk resistance by just interposing the solid electrolyte materials as an evaluation specimen with this Conductive film sheet. It is resulted in speeding up the measurement time and achieving an accuracy data from the measurement results with Complex Impedance test and so on. |

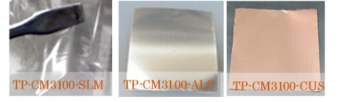

Packed 4 cells in each Plastic holder Aluminum zipper bag   |
||||||||
| Property for Interface-Resistance | |||||||||
| Please refer the following table to show Nyquist plot certifyingalmost nil of the Interface resistance. |
|||||||||
 |
|||||||||

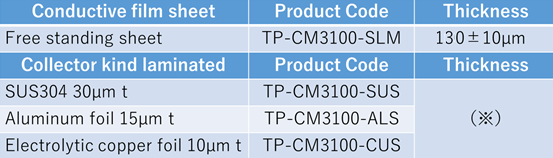

| Product Table of Conductive membrane on collector substrate | |||||||||
| Standard Package specification 5 sheets in a box | |||||||||
 |
 40 x 40 mm size sheet and
20 x 20mm x 4 pieces sheet available |
||||||||
| (※)Film thickness is available at 50μm ± 10 μm. Pleasae consult us in case of further thinner thickness.required | |||||||||
