Conductive film sheet with controlled interface resistance for solid electrolyte evaluation @@@TREKION CM3100 |
|||||||||||||||||||||||
| @ TP-CM3100@@ overview | |||||||||||||||||||||||
When evaluating the conductivity and electrochemical properties of various solid electrolytes (SEs), it is standard practice to assemble individual test cells and apply maximum pressure to minimize interfacialresistance at the sample surface. By simply placing our proprietary conductive film sheet?designed to precisely control interfacial resistance?at the interface between the current collector foil and the positive or negative electrode, you can accurately measure the intrinsic performance (bulk resistance) of the sample. We invite you to utilize this superior conductive film sheet to enhance both measurement speed and accuracy. |
|||||||||||||||||||||||
| @ Interface resistance control characteristics | |||||||||||||||||||||||

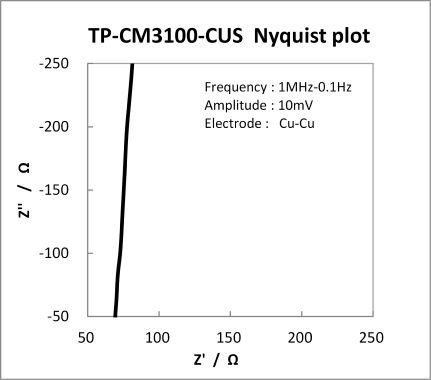

| Please refer to the data in the figure below to confirm that the TP-CM3100 series consists of conductive film sheets with precisely controlled interface resistance. | |||||||||||||||||||||||
@@@@@@@@  |
|||||||||||||||||||||||

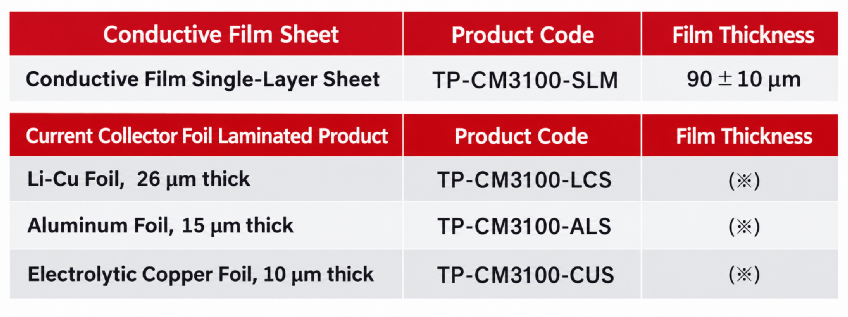

| @ Model Number | |||||||||||||||||||||||
| While our standard offering is a set of five, we can also provide sets of three upon request; please feel free to consult us. | |||||||||||||||||||||||
| @@ @Standard specifications: Boxed, containing 5 sheets each. | |||||||||||||||||||||||
 @@@ |
 |
||||||||||||||||||||||
| @@ @Standard specifications@@@@@@@@@ 40x40mm/V[g Conductive single-layer film sheet (Note)@@@Changed to 90 } 10 Κm @@@ CR2032 coin cell specifications: 20 x 20 mm, 4 pieces per sheet @@ Please select the film thickness from the following three options: @ 20 Κm, A 50 Κm, B 90 Κm. |
|||||||||||||||||||||||
|
|||||||||||||||||||||||
